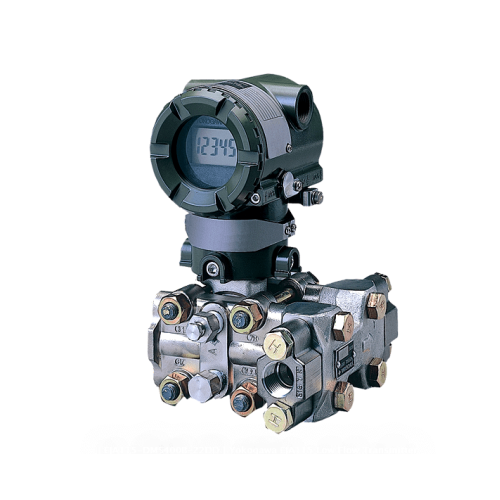

• ترانسمیتر یوکوگاوا | Yokogawa Low Flow Transmitter EJA115-DMS400B-22DD

ترانسمیتر یوکوگاوا | Yokogawa Low Flow Transmitter EJA115-DMS400B-22DD

  • تولیدکننده: YOKOGAWA
  • مدل کالا: EJA115-DMS400B-22DD
ORDER

Product Number: EJA115-DMS400B-22DD
Model:  Low Flow Transmitter
Manufacturer: Yokogawa


Model: EJA115 - Low Flow transmitter
Output signal: -D - 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule): M - 2 to 100 kPa {200 to 10000 mmH2O}{8 to 400 inH2O}{20 to 1000 mbar}
Wetted parts material: S- [Body] JIS SCS14A; [Capsule] JIS SUS316L; [Orifice] JIS SUS316
Process flange rating:  4 - 1/2 NPT female
00 : Always 00
Bolts and nuts material: B - JIS SUS630; (L capsule) 3.5 MPa {35 kgf/cm}; (M, H capsule) 14 MPa {140 kgf/cm}
Installation: -2 - Vertical impulse piping type, right side high pressure, manifold upside
Electrical connection:  2 - 1/2 NPT female, two electrical connections without blind plug
Integral indicator: D - Digital indicator
Mounting bracket: D - JIS SUS304 or SCS13A 2-inch pipe mounting (L type)
