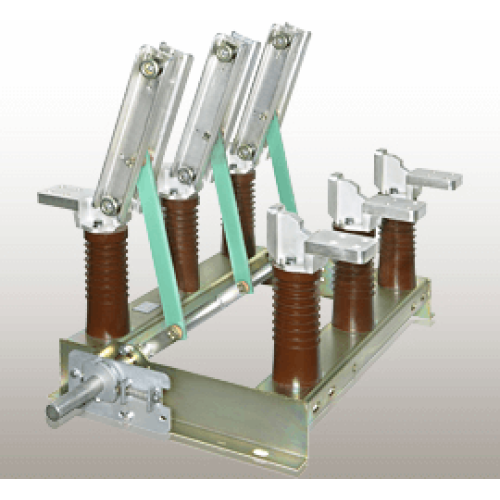

• Ritter Disconnector Switch دیسکانکتور سوئیچ ریتر

Ritter Disconnector Switch دیسکانکتور سوئیچ ریتر

  • تولیدکننده: RITTAL
  • مدل کالا: Disconnector Type RIT
ORDER
Indoor-Disconnector Type RIT
12 kV, 24 kV, 36 kV and 40,5 kV
Rated Current: 630A up to 9000A
Type tested according to IEC/EN 60694 and IEC/EN 62271-102.
  • Fail-safe and reliable
  • Safe and visible isolating distance
  • Small space requirements
  • Small maintenance efforts because of simple and ruggedized construction
  • Long lifetime
  • Comprehensive optional supplementary equipment

Area of application
The new Disconnector type RIT is a further development from the existing type RGT and RNT. The indoor- Disconnector is type tested according to IEC/EN 60694 and IEC/EN 62271-102. The Disconnector is suitable to open and close electric circuits, if there are negligible low currents to be disconnected or if there is no significant difference in the voltage between the electric circuits which shall be separated or the electric circuit which shall be connected. In the open position a clear visible isolating gap will be formed between all the poles of the Disconnector. The insulation level refers to normal air conditions at sea level. For installation altitude above 1000 m consider reduction of insulation level.

Supplementary equipment
  • Auxiliary contacts
  • Motor drive
  • Pneumatic drive
  • Electromagnetic interlock
  • Latch
  • Mechanical interlock
  • Mounted earthing switch at Disconnector
  • Remote drive
  • Special motor drive 10000 operations
  • Capacitive dividing insulator
  • Special version "steel plant"
