Product Number: EJX120A-EES4J-712EN

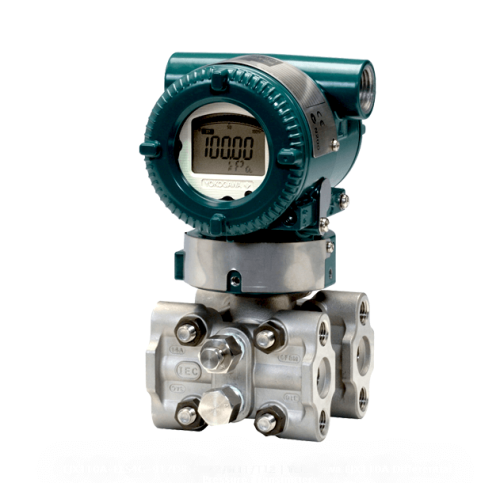

Model: EJX120A Differential Pressure Transmitter
Manufacturer: Yokogawa
- Model: EJX120A - Differential pressure transmitter
- Output signal: -E - 4 to 20 mA DC with digital communication (HART 5 protocol)
- Measurement span (capsule): E - 0.025 to 1 kPa (0.1 to 4 inH2O)
- Wetted parts material: S
Cover flange and process connector: ASTM CF-8M
Capsule: Hastelloy C-276 (Diaphragm); F316L SST, 316L SST (Others)
Capsule gasket: Teflon-coated 316L SST
Vent/Drain plug: 316 SST - Process connections: 4 - with 1/2 NPT female process connector
- Bolts and nuts material: J - B7 carbon steel
- Installation: -7 - Vertical piping, left side high pressure, and process connection downside
- Amplifier housing: 1 - Cast aluminium alloy
- Electrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugs
- Integral indicator: E - Digital indicator with the range setting switch (push button)
- Mounting bracket: N - None
