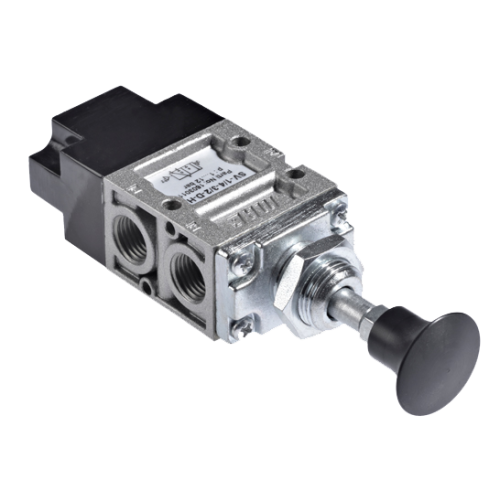

• Mechanically Actuated Valves- MAG - MERT Akiskan Gucu

Mechanically Actuated Valves- MAG - MERT Akiskan Gucu

مشخصات عمومی:
  • G 1/4" Air inlet and outlet ports.
  • Compact and robust design.
  • High cycle life.
  • 3/2, 5/2 and 5/3 function options.
  • 5 different actuation types, 4 different feedback types
مشخصات فنی:
Standards: Test standard is ISO 19973-2.
Actuation Type: Button, air, hand lever, pulley or pedal actuation types
Feedback Type: Air, spring, pulley or same as actuation types
Operating Pressure: -1 …0…… 12 Bar
Fluid Type: Filtered dry or lubricated compressed air. If oil lubricated air will be used, it is recommended to use MAG special air preparation oil.
Operating Temperature: -10 °C to +80 °C.
Flow Rate (@ 6 Bar): 990 Nl/min
System cleanliness: Particle size in compressed air should be maximum 40 µm.

Application Conditions:
  • Maximum operating pressure should be complied in each operation of pneumatic valve.
  • Adverse effects such as aggressive fine particles, vapours, high temperature and compressed air contamination should be avoided.

Valve body is manufactured by aluminium injection moulding. Slide is manufactured from stainless material. Sealing components are manufactured from NBR.
Test: Each valve is subjected to internal and external leak tightness test in accordance with MAG standards and ISO 19973 standards before being shipped.
